Using Kubernetes with Spinnaker | The Ultimate Guide

October 18, 2021

Spinnaker is an application deployment service. This article will provide a walkthrough and introduce best practices for deploying a Kubernetes application using Spinnaker.

Brian Storti
Principal Infrastructure Engineer

Operations engineers are constantly on the lookout for new continuous integration and continuous deployment (CI/CD) tools to improve their workflow. Spinnaker, for example, is an open-source continuous delivery platform created by Netflix to enable engineers to release software changes seamlessly. It works natively with several different orchestration tools and cloud providers, like Kubernetes, and it provides the building blocks you can use to build the delivery pipeline the way you want.

In this article, you will set up a new Spinnaker cluster and build a delivery pipeline, deploying code changes automatically to your Kubernetes cluster.

Here is an overview of what you are going to build:

  1. A developer pushes changes to GitHub;
  2. which builds a new Docker image in Docker Hub;
  3. which triggers a pipeline in Spinnaker;
  4. which deploys changes in Kubernetes.

Prerequisites

To follow along with this tutorial, you will need:

  • A Kubernetes 1.16+ cluster. I’m running a local Kubernetes cluster using Docker for Mac, but you are free to create a cluster using another method or use a managed cluster from a cloud provider.
  • The <terminal inline>kubectl<terminal inline> command-line tool installed and configured to connect to your cluster.

Running Spinnaker

Spinnaker is composed of several services that run independently, and running each of them manually would be a lot of work. Thankfully, the Spinnaker team also provides a CLI tool called Halyard, to help install, configure, and upgrade Spinnaker.

Using Halyard, you will run all these services that compose Spinnaker in your Kubernetes cluster. In this article, I will run Spinnaker in the same Kubernetes cluster as my applications, but you could also have a dedicated cluster just for Spinnaker.

Running Halyard

The first thing you need to do is run <terminal inline>halyard<terminal inline>:


$ docker run --name halyard --rm -it \
 -v ~/.hal:/home/spinnaker/.hal \
 -v ~/.kube:/home/spinnaker/.kube \
 us-docker.pkg.dev/spinnaker-community/docker/halyard:stable

Here you are running a container named <terminal inline>halyard<terminal inline>, using the stable image provided by the Spinnaker team, and mounting two volumes:

  • One for the directory where Halyard stores its configurations, <terminal inline>~/.hal<terminal inline>
  • One for your <terminal inline>.kube<terminal inline> directory, because Spinnaker will need to access your <terminal inline>kubeconfig<terminal inline> file

After the Halyard daemon is running and you start seeing its logs, run this command in another terminal window to get a bash session in this container:


$ docker exec -it halyard bash

Make sure Halyard is running fine by checking its version:


$ hal --version
# 1.42.1-20210517175407

Configuring a Spinnaker Provider

In Spinnaker, you need to enable the providers you want to use, ie, integrations to cloud platforms where you can deploy your applications. For example, you can register AWS and GCP as providers.

In this case, you will run both Spinnaker and your applications in Kubernetes. Spinnaker has a native Kubernetes provider, so that’s the only thing you will need to enable:


$ hal config provider kubernetes enable

Then, you need to add an account to this provider, which is how Spinnaker will know how to access it. As you are using the Kubernetes provider, the only thing you need is to give this account a name and tell Spinnaker which <terminal inline>context<terminal inline> from your <terminal inline>kubeconfig<terminal inline> should be used.

Here, I’m defining a <terminal inline>demo-account<terminal inline> account, saying it should use my <terminal inline>demo-cluster<terminal inline> context:


$ hal config provider kubernetes account add demo-account \
 --context demo-cluster

If you were using multiple clusters, such as one for production and another for Spinnaker, you could add two accounts here, setting the right context from your <terminal inline>kubeconfig<terminal inline> for each one.

Now that you have your account defined and ready to be used, you can tell Halyard where your Spinnaker microservices should be deployed:


$ hal config deploy edit \
 --type distributed \
 --account-name demo-account

The <terminal inline>--type distributed<terminal inline> flag is what tells Spinnaker to run its services in Kubernetes, and it’s the recommended environment for production deployments. Alternatively, you can also use the type <terminal inline>localdebian<terminal inline>, which will install all the services on a single machine, where Halyard is running.

The <terminal inline>--acount-name demo-account<terminal inline> flag is saying Halyard should use the <terminal inline>demo-account<terminal inline> you just configured to deploy Spinnaker. It’s here that you could set a different account if you were using separate clusters for your apps and Spinnaker.

Configuring External Storage

When you change your application’s settings and pipelines, Spinnaker persists in external storage. Several providers are supported out of the box, like Amazon S3, Google Cloud Storage, and Azure Storage.

In this example, I’ll use Amazon S3.

First, you need to set the storage type to <terminal inline>s3<terminal inline>:


$ hal config storage edit --type s3

Then configure this storage with your S3 credentials:


$ hal config storage s3 edit \
 --access-key-id $YOUR_ACCESSKEY_ID \
 --secret-access-key

Above, you’re providing your AWS access key ID, and Halyard will prompt you for your secret access key.

Deploying Spinnaker

With all the configuration in place, you can now finally deploy Spinnaker! Still using the Halyard container, you’ll set the Spinnaker version you want to use and then apply these configs:


$ hal config version edit --version 1.25.4
$ hal deploy apply

When you run <terminal inline>hal deploy apply<terminal inline>, Halyard will check that everything is fine and start running the Spinnaker services in the account you configured.

Assuming you have <terminal inline>kubectl<terminal inline> running and using the same context you used for Spinnaker (<terminal inline>demo-cluster<terminal inline>), you can see the pods being created in the <terminal inline>spinnaker<terminal inline> namespace:

$ kubectl get pods --namespace spinnaker


# spin-clouddriver-648796f8d8-d8rfs 0/1 ContainerCreating 0 12s
# spin-deck-77444987dd-r4fkl 0/1 ContainerCreating 0 12s
# spin-echo-f6d78ddd5-f5m6p 0/1 ContainerCreating 0 12s
# spin-front50-5d9c9fbd65-gpqt8 0/1 ContainerCreating 0 12s
# spin-gate-76db474459-f6wf5 0/1 ContainerCreating 0 12s
# spin-igor-555cd9745b-xzrwr 0/1 ContainerCreating 0 12s
# spin-orca-6648cb9875-nvzs9 0/1 ContainerCreating 0 12s
# spin-redis-6f84989bfd-rdpmn 0/1 ContainerCreating 0 12s
# spin-rosco-7c468bc6dc-nnpwh 0/1 ContainerCreating 0 12s

Accessing Spinnaker Locally

After all this work, now it’s time for a reward: seeing Spinnaker running.

In your host machine (not in the <terminal inline>halyard<terminal inline> container), you’ll use <terminal inline>kubectl<terminal inline> again to expose two Spinnaker services:

  • <terminal inline>deck<terminal inline>: the actual UI you will access in your browser
  • <terminal inline>gate<terminal inline>: the API gateway the UI uses to communicate with all the other services

Now go ahead and use <terminal inline>kubectl port-forward<terminal inline> to expose these services (you will need to run each command in a separate window):


$ kubectl port-forward -n spinnaker service/spin-gate 8084
$ kubectl port-forward -n spinnaker service/spin-deck 9000

And that’s it. You’ll be able to access Spinnaker locally on <terminal inline>http://localhost:9000<terminal inline>.

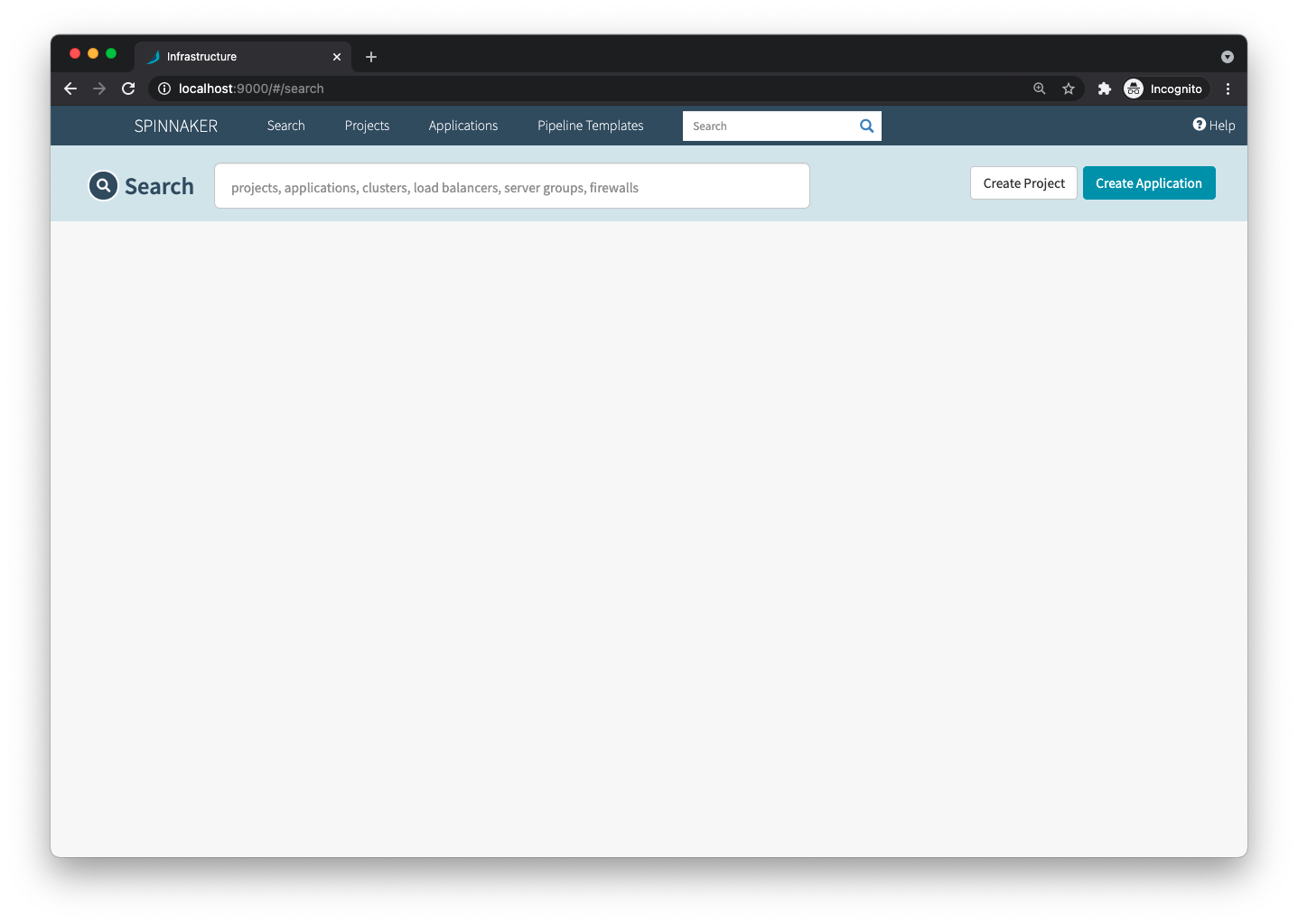

Spinnaker home page
Spinnaker home page

Deploying Your First Service with Spinnaker

To get a taste of Spinnaker, you will create your first pipeline, deploying a simple NGINX container. On the Spinnaker home page, click Create Application and set a name and the owner’s email.

Spinnaker new application popup
Spinnaker new application popup

On the left side, click the Pipelines menu, and then Configure a new pipeline.

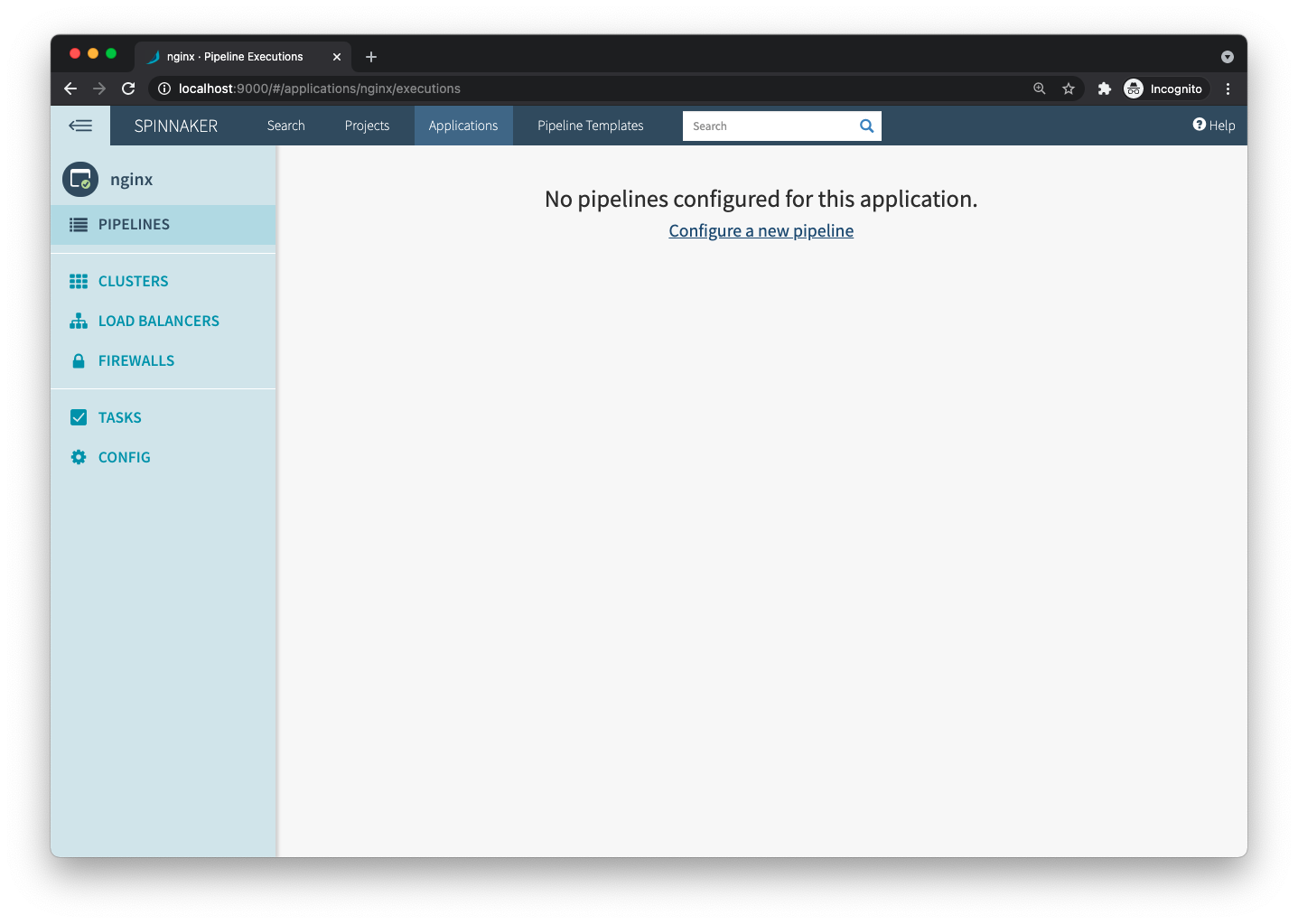

Spinnaker pipeline view
Spinnaker pipeline view

Give this pipeline a name, like <terminal inline>Deploy Nginx<terminal inline> and click Create.

You will be taken to the pipeline configuration page. Every pipeline is composed of a configuration and one or more stages, and each stage can have a different type.

For this example, you don’t need to change any configurations, so just create a new stage by clicking Add stage.

In the new stage page, select the type Deploy (Manifest), which is used to deploy Kubernetes manifests, and the account <terminal inline>demo-account<terminal inline>, which is where this manifest will be applied. If you had multiple clusters, like one for staging and another for production, each one would be a different <terminal inline>account<terminal inline>—this setting is what would tell Spinnaker in which cluster that stage should run.

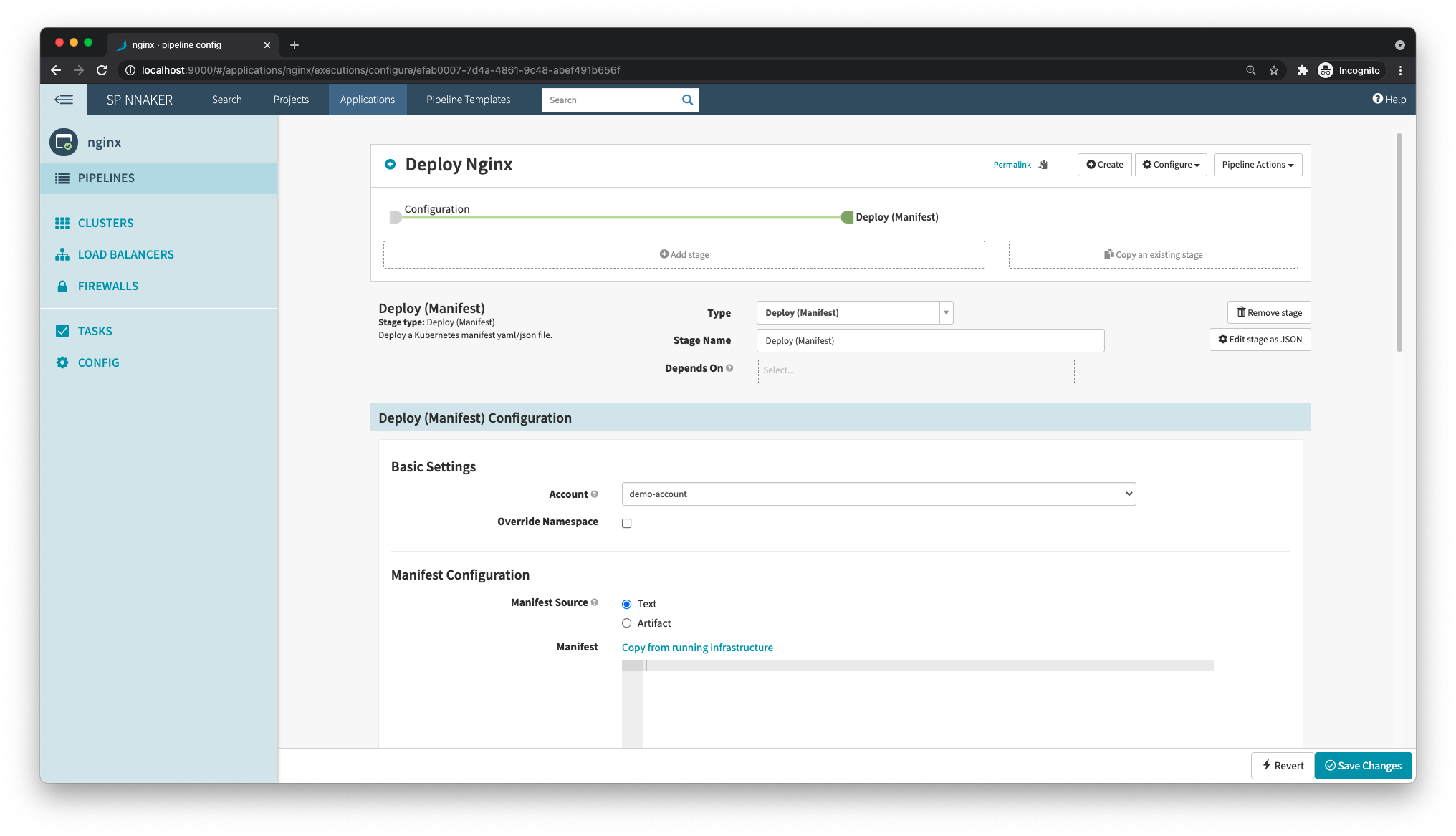

Pipeline stage to deploy manifest
Pipeline stage to deploy manifest

In the Manifest Configuration section, you can either have the manifest text hard-coded in the page, or choose an artifact, which means an object that references an external source, like, for instance, a GitHub file.

To keep things simple for now, you can select Text and paste a manifest directly in the Spinnaker UI. Here’s a simple manifest defining a Kubernetes service and a deployment for NGINX:


---
apiVersion: v1
kind: Service
metadata:
 name: nginx-svc
 namespace: default
spec:
 selector:
  app: nginx
 ports:
 - port: 80
  targetPort: 80
...
---
apiVersion: apps/v1
kind: Deployment
metadata:
 name: nginx
 namespace: default
spec:
 replicas: 1
 selector:
  matchLabels:
   app: nginx
 template:
  metadata:
   labels:
    app: nginx
  spec:
   containers:
   - image: nginx
    name: nginx-container

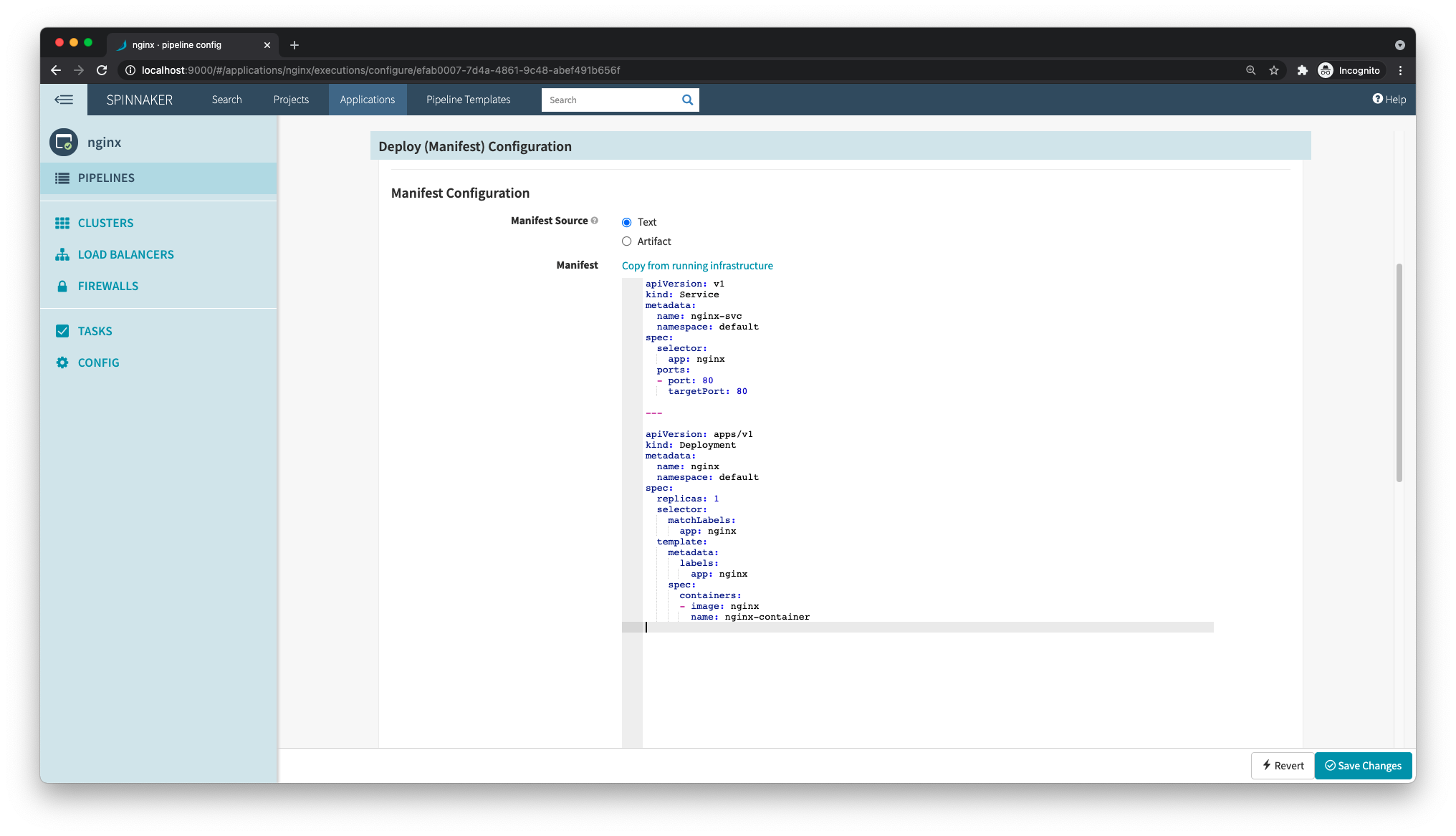

Manifest yaml in Spinnaker
Manifest yaml in Spinnaker

You can now save these changes and go back to the Pipelines page, where you will see the pipeline you just created. On the right side of this pipeline, click Start Manual Execution to manually trigger the pipeline.

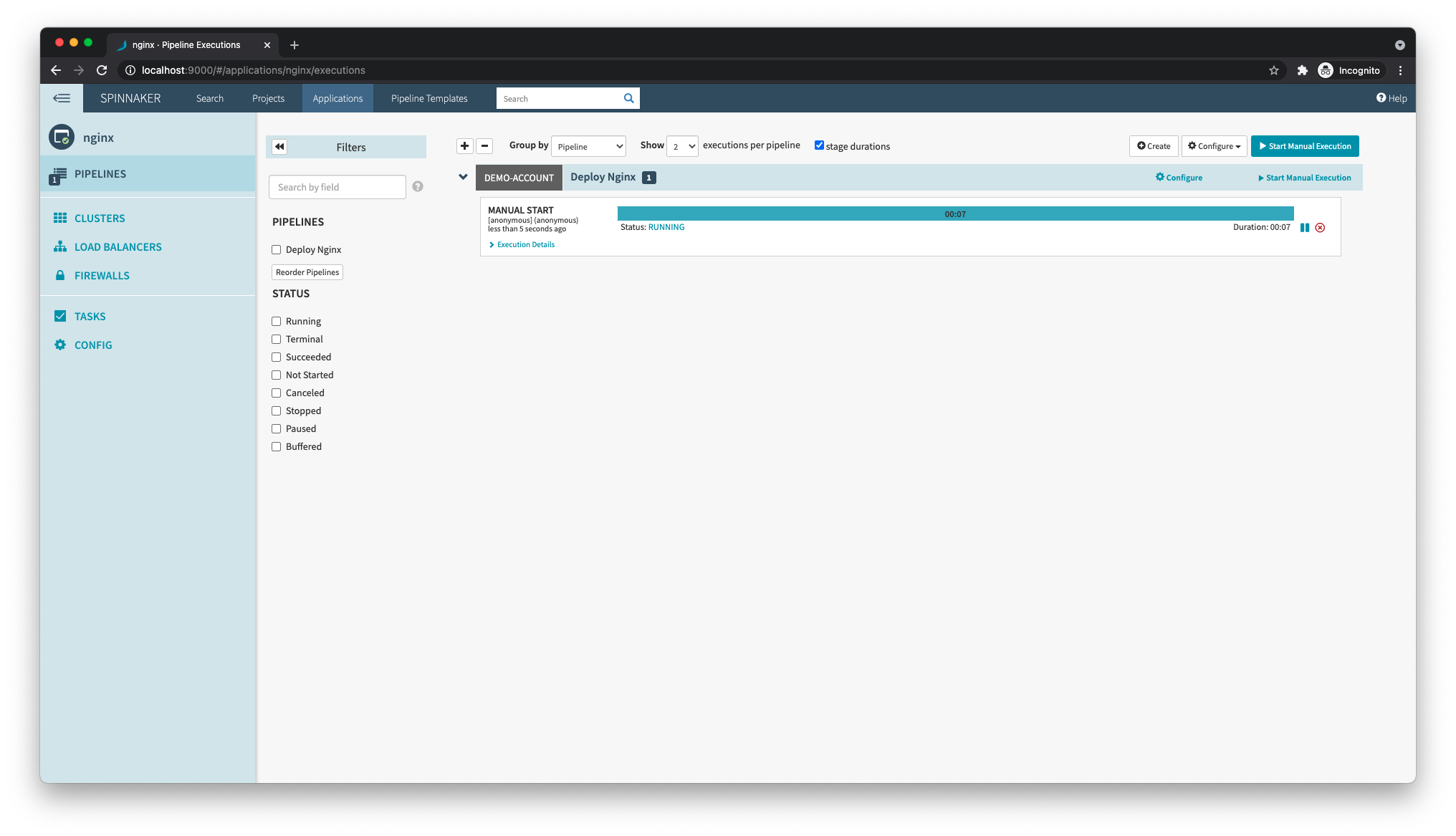

Pipeline executing in Spinnaker
Pipeline executing in Spinnaker

After it finishes running, you can confirm with <terminal inline>kubectl<terminal inline> that a new service and pod were created:

$ kubectl get pod,svc

NAME READY STATUS RESTARTS AGE
pod/nginx-7bc7d78944-cm7qs 1/1 Running 0 90s

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/nginx-svc ClusterIP 10.104.56.154 <none> 80/TCP 91s

You can also use <terminal inline>kubectl port-forward<terminal inline> to access <terminal inline>nginx<terminal inline> from your browser on port <terminal inline>8080<terminal inline>:


$ kubectl port-forward service/nginx-svc 8080:80

And that’s it, your first service deployed to Kubernetes through Spinnaker!

Understanding Spinnaker

Before you move ahead, it’s important to understand a few terms used by Spinnaker, as it doesn’t always map one-to-one with the terminology used in Kubernetes.

There are four main pages that you’ll see for your applications:

  • Pipelines: It’s the page you just used to deploy an application. Here, you can create as many pipelines as you want, each one composed of one or more stages. In each of these pipelines, you could have a stage to apply a <terminal inline>ConfigMap<terminal inline> with your application’s configuration, another stage to run a <terminal inline>Job<terminal inline> that executes your database migrations, and a final stage to apply your <terminal inline>Deployment<terminal inline>.
  • Clusters: This is where you will see your workloads. In this example, you will see the <terminal inline>nginx Deployment<terminal inline> with <terminal inline>ReplicaSet<terminal inline> <terminal inline>v001<terminal inline> and all the <terminal inline>Pods<terminal inline> that are being managed by this <terminal inline>ReplicaSet<terminal inline>.

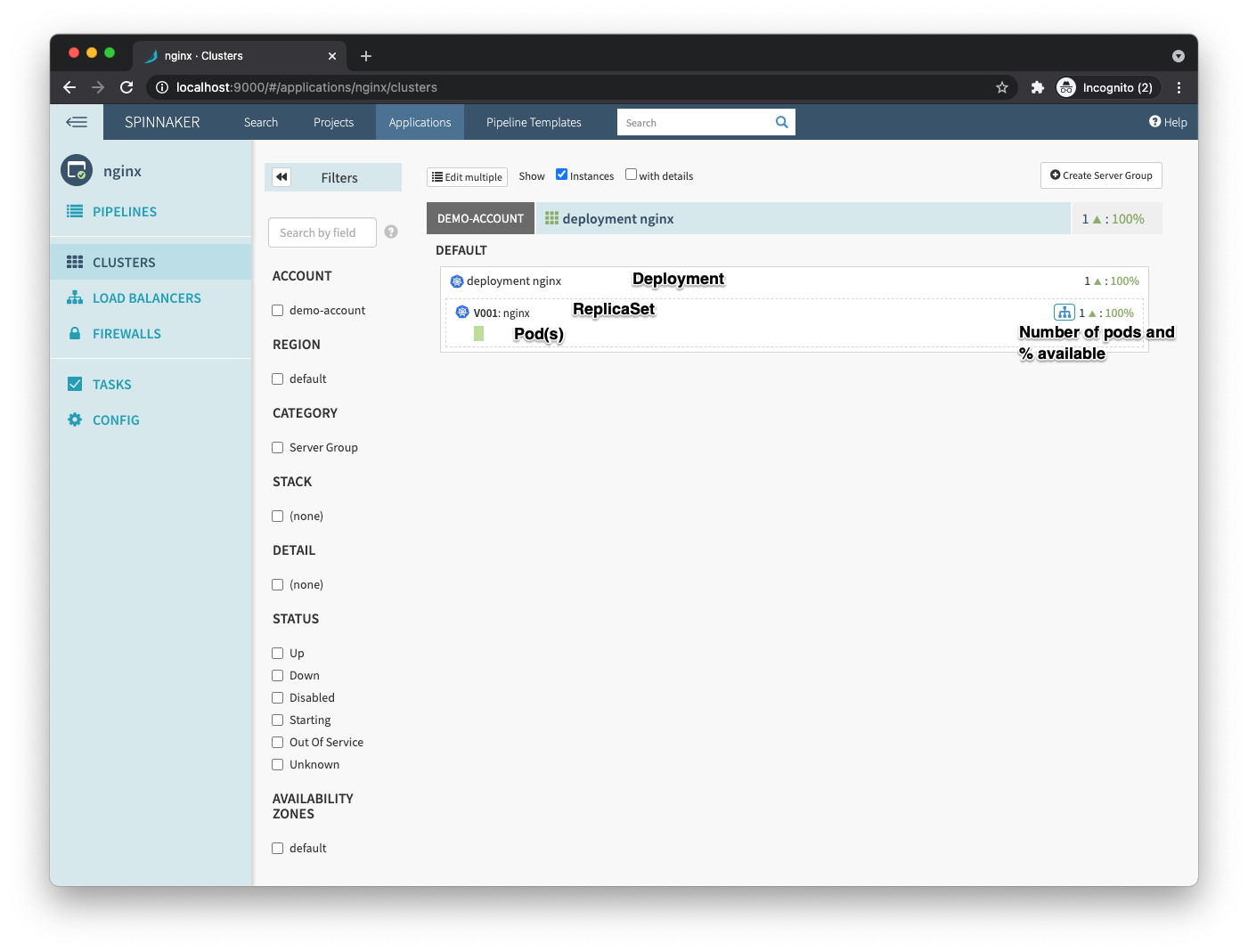

Spinnaker clusters view
Spinnaker clusters view

  • Load balancers: This is where Spinnaker shows your Kubernetes services and ingresses. You can see you have a single service, <terminal inline>nginx-svc<terminal inline>, and all the pods behind it.

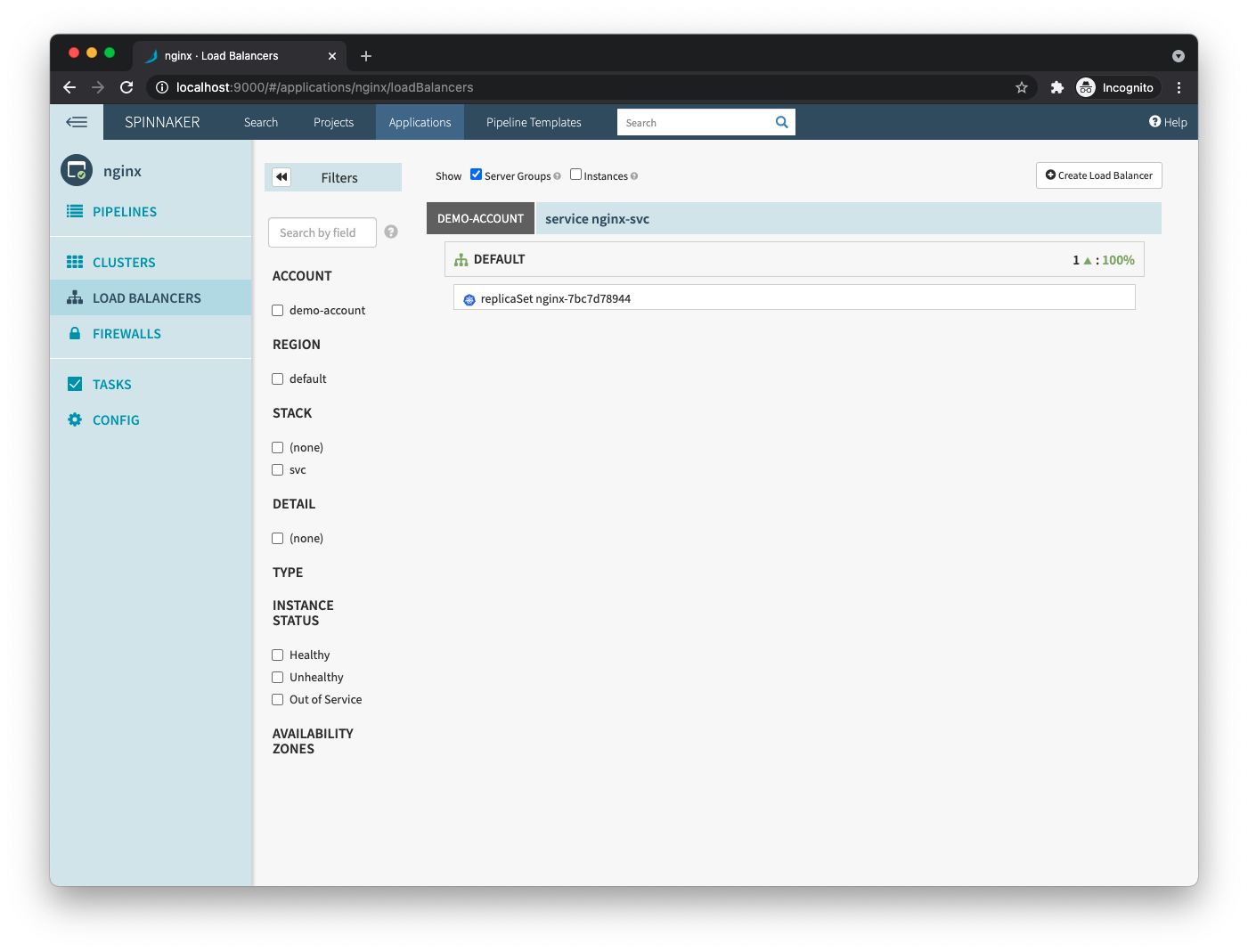

Spinnaker load balancers view
Spinnaker load balancers view

  • Firewalls: This is where Spinnaker shows your <terminal inline>NetworkPolicies<terminal inline>. You haven’t created any policies, so this page should be empty.

It’s important to note these terms could mean very different things for different providers. For example, if you were using AWS, you could use Spinnaker to spin up a new Application Load Balancer (ALB).

Building Your Own Service

Now that you have a better understanding of Spinnaker and how it interacts with Kubernetes, you can create your own service and an entire delivery pipeline end-to-end. The goal is to push a code change to GitHub and see that change deployed to your Kubernetes cluster, following the steps you define.

Creating a Simple Example Service

For this example, I will use a very simple Ruby service that just returns the message <terminal inline>Hello, Spinnaker!<terminal inline>. Here’s the entire code for it:


# app.rb
require "sinatra"
set :bind, "0.0.0.0"

get "/" do
 "Hello, Spinnaker!"
end

And its Dockerfile:


# Dockerfile
FROM ruby2.7
RUN gem install sinatra
COPY app.rb /
CMD ["ruby", "app.rb"]

To test that the service is working as expected locally:


$ docker build . -t sample-app

$ docker run -p 4567:4567 sample-app

$ curl http://localhost:4567
# Hello, Spinnaker!

There you go, a simple Dockerized service that’s ready to be used for your delivery pipeline!

Now you can push this code to a GitHub repository, like I did here.

Creating a Docker Hub Project

The next step is to create a repository on Docker Hub, which is where your Docker images will live. You will use Docker Hub to build new images when you push a tag to GitHub, and that will later trigger a Spinnaker pipeline to deploy this new image.

In your Docker Hub account, create a new repository linked to the GitHub project that has the code for your sample service. Create a build rule to build a new Docker image every time a tag is pushed:

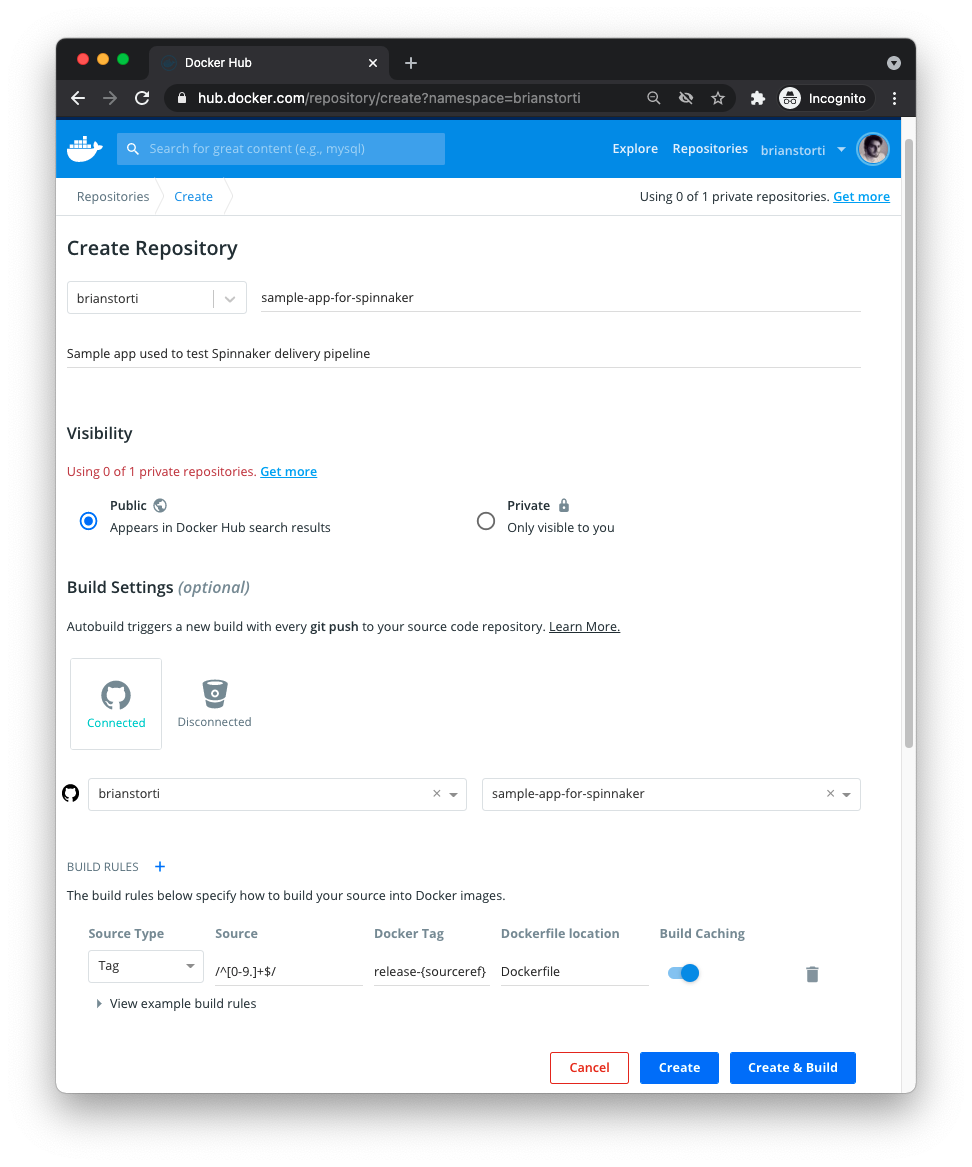

Docker Hub new repository page
Docker Hub new repository page

We are using Docker Hub in this example, but there are various other tools you can use to build and store your Docker images. You could, for example, use Jenkins to build an image after your automated tests pass, and push that image to a private repository on Amazon ECR.

To make sure everything is working as expected, you can push a new Git tag to GitHub and watch Docker Hub building a Docker image:


$ git tag 1.1 && git push --tags

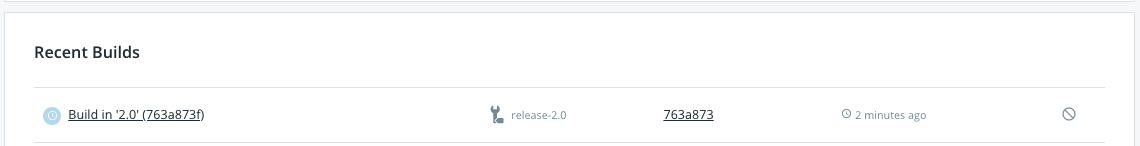

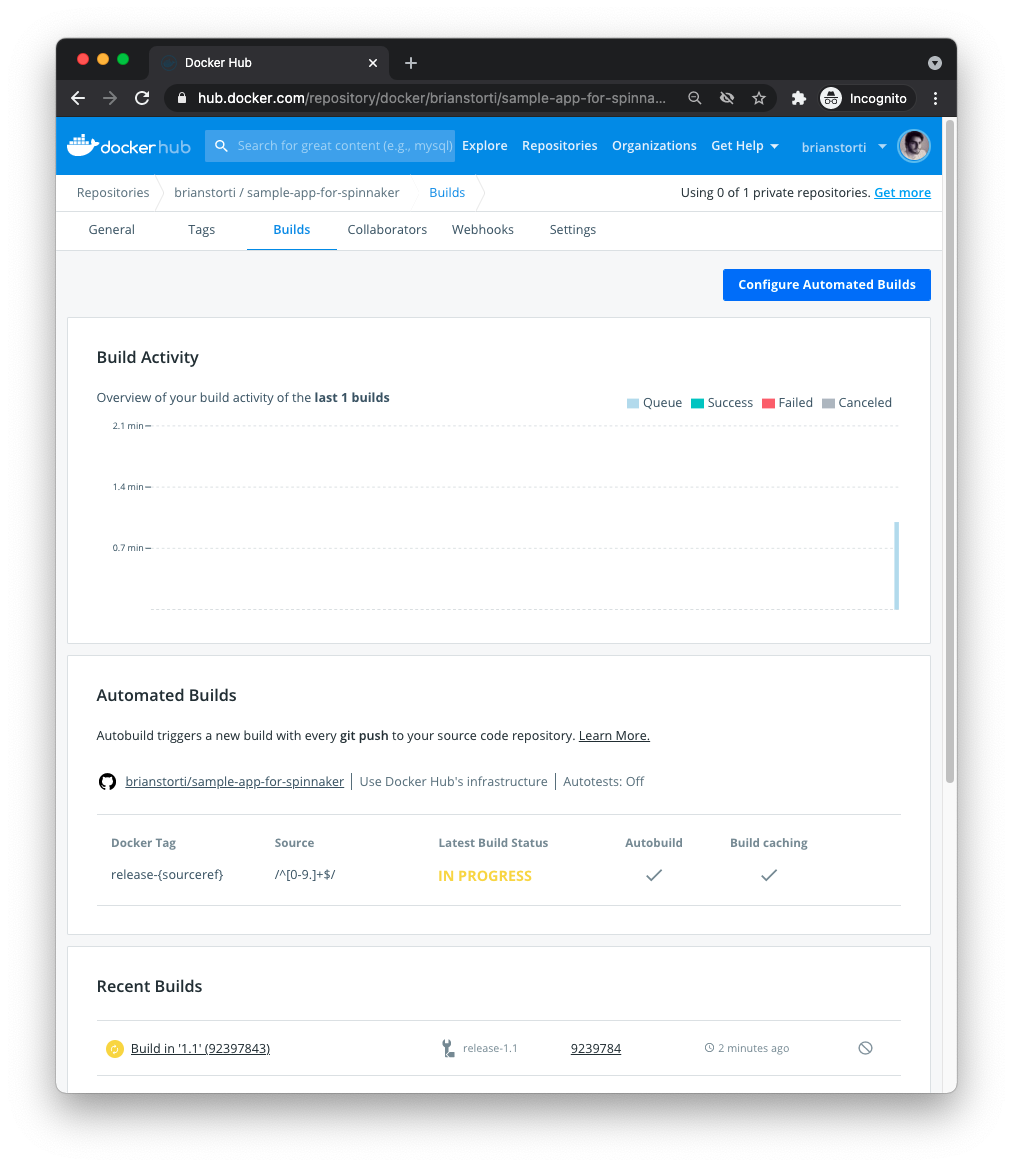

Docker Hub building new image
Docker Hub building new image

Creating Kubernetes Manifests for Your Service

Lastly, you will create a Kubernetes service and deployment for this service and push to the same GitHub repository:


# service.yaml

---
apiVersion: v1
kind: Service
metadata:
 name: sample-app-svc
 namespace: default
spec:
 selector:
  app: sample-app
 ports:
 - port: 80
  targetPort: 4567

# deployment.yaml

---
apiVersion: apps/v1
kind: Deployment
metadata:
 name: sample-app
 namespace: default
spec:
 replicas: 1
 selector:
  matchLabels:
   app: sample-app
 template:
  metadata:
   labels:
    app: sample-app
  spec:
   containers:
   - image: index.docker.io/brianstorti/sample-app-for-spinnaker # CHANGE YOUR ACCOUNT
    name: sample-app

Make sure you change the image in the deployment so it uses your account and repository names. Also, note that this deployment is not specifying any specific image tag. That’s because you want to let Spinnaker bind the image tag that’s received when a pipeline is triggered by Docker Hub.

Building a Continuous Delivery Pipeline for Your Service

Now that you have Spinnaker up and running and a service on GitHub that you can push changes to and have new Docker images created by Docker Hub, you are ready to put all the pieces together. It’s time to create a CD pipeline.

Configuring Halyard for GitHub and Docker Hub

The first step is to enable GitHub as an artifact provider, so Spinnaker can fetch the manifest files, and the Docker Hub provider, so it can trigger a pipeline when new images are built.

For GitHub, you’ll need to have a token (with the <terminal inline>repo<terminal inline> scope if you want to use a private repository).

In your halyard container, enable the Git Hub artifact source:


$ echo "your github token" > github-token
$ hal config artifact github account add my-github-account --token-file github-token
$ hal config artifact github enable

And then enable the Docker Hub provider, changing the <terminal inline>--repositories<terminal inline> value to use your own account name and repository name:


$ hal config provider docker-registry enable
$ hal config provider docker-registry account add my-docker-registry \
 --address index.docker.io \
 --repositories brianstorti/sample-app-for-spinnaker

Lastly, apply these changes with:


$ hal deploy apply

And that’s it. Halyard will restart the Spinnaker services, and then it will be able to interact with GitHub and Docker Hub.

Creating a New Spinnaker Pipeline for Your Service

Now that you have all your necessary integrations configured, you are ready to put in place a fully automated delivery pipeline for this simple service. You’ll start by creating a new application in Spinnaker, as you did for the NGINX example. I’ll call it <terminal inline>my-service<terminal inline>.

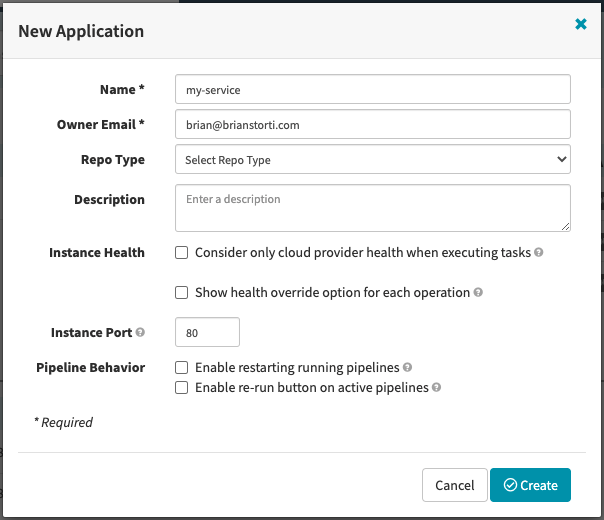

New application for your service
New application for your service

In the application’s Pipeline page, create a new pipeline that will be responsible for deploying this service. You can call it <terminal inline>Deploy service<terminal inline>.

In this pipeline configuration, you can set up a new automated trigger. These are things that can trigger the pipeline automatically, like a webhook call, a cron schedule or, in this case, a new image being pushed to Docker Hub.

Go ahead and select Docker Registry as the automated trigger type. For the Registry Name, you’ll see the provider you set up previously, <terminal inline>my-docker-registry<terminal inline>. In the Organization field, you will see your username (or organization), and for the Image, you see the repository you configured:

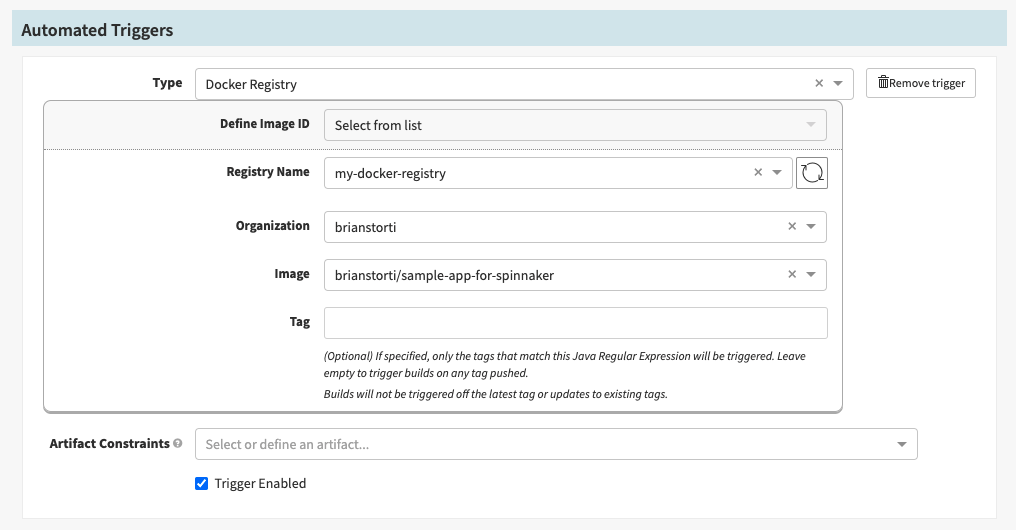

Spinnaker automated trigger
Spinnaker automated trigger

Notice the Tag field was left empty, which means any image tag will trigger this pipeline. You could also define a specific pattern for image tags to be deployed. For example, you could have <terminal inline>production-*<terminal inline> and <terminal inline>staging-*<terminal inline> tags triggering different pipelines.

If you save and try to manually run this pipeline, you will be prompted for the image tag you want to trigger the pipeline with.

Manual pipeline execution popup
Manual pipeline execution popup

Fetching Manifests from GitHub

You could define your Kubernetes YAML manifests directly in Spinnaker, as you did previously for NGINX. That works fine, but you lose the benefits of having these manifests versioned with your code, and potentially even making changes to these files in GitHub trigger a pipeline execution.

For this sample service, you will make Spinnaker fetch the files directly from the GitHub repository you created previously. This repository has two manifest files: <terminal inline>service.yaml<terminal inline> and <terminal inline>deployment.yaml<terminal inline>. You’ll create two stages in this pipeline you just configured, one to apply the <terminal inline>service<terminal inline> and another for the <terminal inline>deployment<terminal inline>.

Go ahead and create a new stage in this pipeline with the type <terminal inline>Deploy (Manifest)<terminal inline> and name it <terminal inline>Apply Deployment<terminal inline>. Select the demo-account, and in the Manifest Configuration section, select artifact instead of text.

For the Manifest Artifact field, choose Define a new artifact and then select the GitHub account you configured. For the Content URL, you will define the API URL that Spinnaker will use to fetch this file from GitHub, following this pattern:


https://api.github.com/repos/<YOUR-USERNAME>/<YOUR-REPO>/contents/<FILE-PATH>

For example, to get the file from my repository, I’m using this path:


https://api.github.com/repos/brianstorti/sample-app-for-spinnaker/contents/deployment.yaml

And, finally, the commit or branch to be used, which will be <terminal inline>main<terminal inline> by default on GitHub.

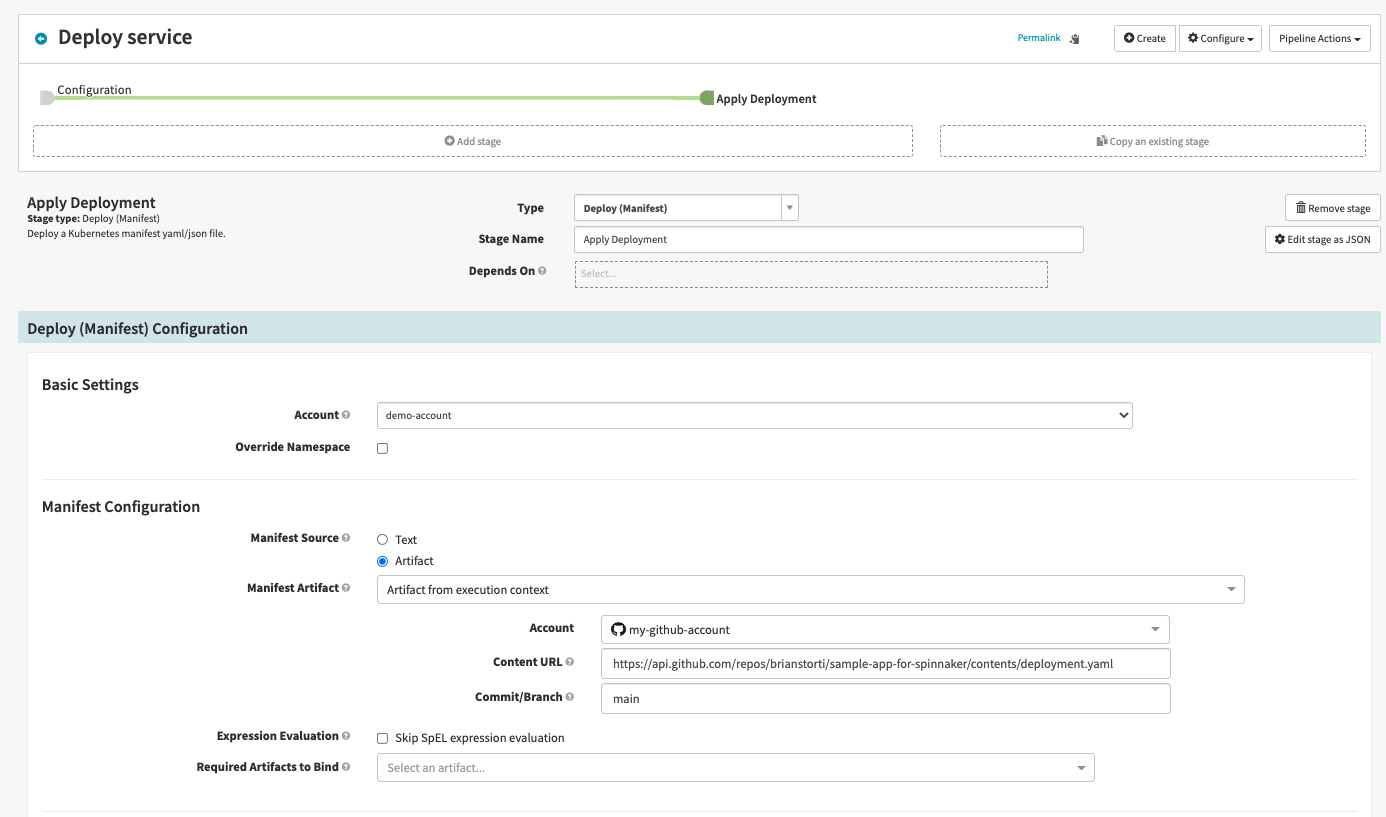

Pipeline stage to apply deployment
Pipeline stage to apply deployment

You can now follow the same process, creating a new stage to deploy your <terminal inline>service.yaml<terminal inline> manifest from GitHub. The result should be this:

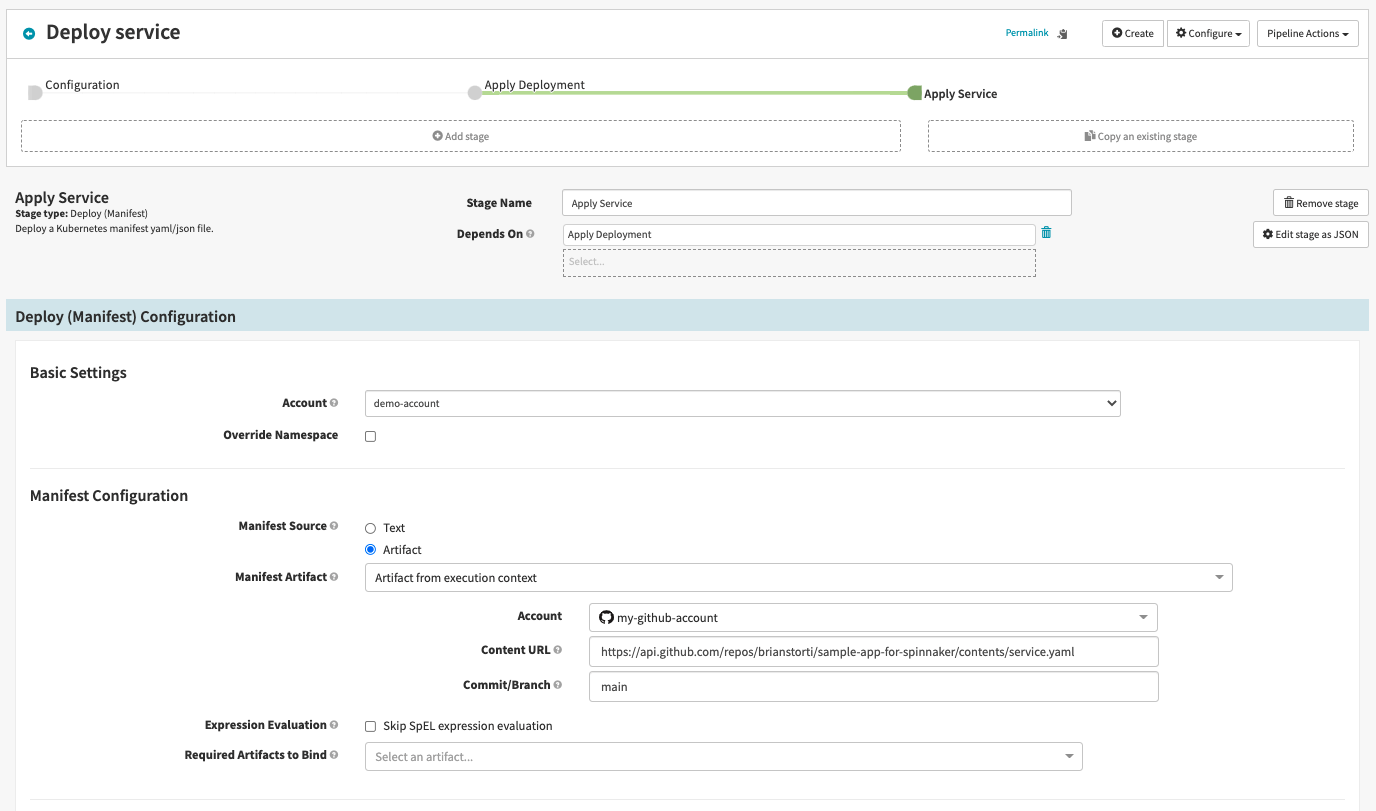

Pipeline stage to apply service
Pipeline stage to apply service

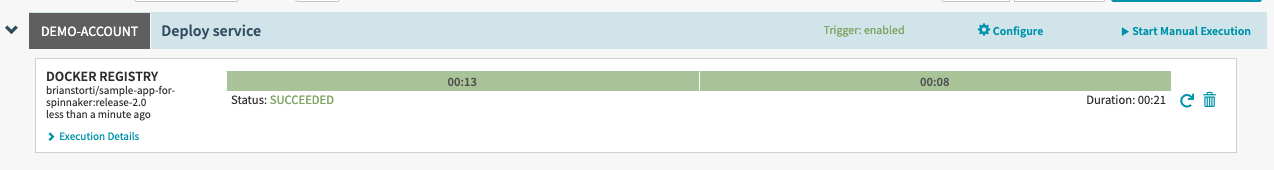

And that’s it! Every time you push a tag to GitHub, a new Docker image will be built. This will automatically trigger your Spinnaker pipeline, which will fetch the manifest files from GitHub, bind the Docker image to this manifest, updating the image to be deployed, and apply these manifests to your Kubernetes cluster.

Seeing It in Action

To see this entire process in place, you can push a new tag to your GitHub repository and watch the pipeline run until your change is live.

First, in your service’s repository, change the <terminal inline>app.rb file<terminal inline>, adding a <terminal inline>(v2)<terminal inline> to the returned string:


get "/" do
 "(v2) Hello, Spinnaker!"
end

And now commit, tag, and push the changes to GitHub:


$ git commit -am "Changes for v2" && git tag 2.0
$ git push && git push --tags

Now you can just watch the delivery pipeline in action.

First, Docker Hub will notice this new <terminal inline>2.0<terminal inline> tag in GitHub and start building a new image tagged <terminal inline>release-2.0<terminal inline>.

Docker Hub building release-2.0
Docker Hub building release-2.0

Then, after the build is done, Spinnaker will notice the new Docker image present in your registry, which will trigger a pipeline execution:

Pipeline automatically triggered in Spinnaker
Pipeline automatically triggered in Spinnaker

After Spinnaker finishes running, you can see the newly deployed resources in your cluster:

$ kubectl get deploy,service

AME READY UP-TO-DATE AVAILABLE
deployment.apps/sample-app 1/1 1 1

NAME TYPE CLUSTER-IP
service/sample-app-svc ClusterIP 10.106.238.227

To see the service running and make sure your changes are there, you can again use <terminal inline>port-forward<terminal inline>:


$ kubectl port-forward service/sample-app-svc 8080:80

# in another terminal session
$ curl http://localhost:8080
(v2) Hello, Spinnaker!

Conclusion

In this article, you configured a new Spinnaker cluster, as well as its integration with several other services, like GitHub and Docker Hub, making it ready to deploy changes to your Kubernetes cluster. You have also built a delivery pipeline that continuously releases changes pushed to GitHub, which should give you an idea of one of the many possible ways to build a CI/CD pipeline with Spinnaker and Kubernetes.

Spinnaker is a very mature platform, and there are a lot of features that were not covered here.

If you’re running your applications or even Spinnaker itself on Kubernetes, check out how ContainIQ can help you monitor your cluster’s events and metrics and give you actionable insights to improve its health and performance.

Article by

Brian Storti

Principal Infrastructure Engineer

Hi! I'm Brian (@brianstorti) and I've been writing software professionally since 2007. I currently work as a Principal Infrastructure Engineer at AlphaSights, and was a Senior Consultant at ThoughtWorks before that.

Read More
