Using Prometheus for Kubernetes Monitoring | Tutorial & Tips

November 30, 2021

Prometheus is an open-source monitoring tool that can help you monitor your Kubernetes cluster. But, it’s not the only choice and in this article, we’ll explore it along with some other options.

Renjith Ravindranathan
DevOps Engineer

Kubernetes is a complex system with many moving parts. Effective monitoring of such a dynamic system requires tools with advanced capabilities. Prometheus is one such application.

Prometheus is an open-source monitoring solution that can collect metrics from a number of target systems. It collects and stores the metrics as time-series data. It also features an excellent alerting mechanism that can integrate with popular team collaboration and incident management tools.

In this article, you will learn why monitoring your Kubernetes cluster is important, what features good monitoring tools must have, and how Prometheus can help. You will also learn about some alternatives to Prometheus for monitoring Kubernetes.

Why Is Kubernetes Monitoring Important?

Kubernetes abstracts a lot of functionalities under the hood. Monitoring each component in the system (physical nodes, pods, containers, proxy, schedulers, etc.) is a big task involving many interdependencies between these components. That’s why, without a proper monitoring strategy, it can be fairly difficult to manage a Kubernetes cluster in a busy production environment.

One of the main areas to monitor is the physical Kubernetes infrastructure, which includes the Node resources—CPU, RAM, network latency, or disk I/O. Another area is the Pods (for example, the number of currently running Pods against the configured value or the number of Pods per Node Group, and so on). Containers have their own metrics—like the ones you get by running docker stats. Finally, applications running within the containers will have their own metrics. Continuously monitoring metrics from all layers of the cluster will also help you find the best possible configurations for different components.

Metrics aside, a proper monitoring solution can also trap anomalies and unusual events from the cluster and notify operations teams in real time. This allows the team to proactively investigate the root cause and provide timely resolution.

Application usage history and trend analysis are other benefits of proactive monitoring. For example, if the monitoring history shows the cluster spawning up new Nodes for Pods only during weekends, you can further investigate. Perhaps there are spikes in client connections hitting the load balancer during that time. Equipped with such knowledge, you can add some extra headroom in the cluster to ensure Nodes are readily available for Pods.

Most monitoring solutions in the market today will offer some degree of visibility into Kubernetes. When considering a monitoring solution, the following are some basic factors you should consider:

  • Native integration with Kubernetes
  • Wide range of available metrics from all layers of Kubernetes
  • Log management facilities
  • Ease of querying metrics and logs
  • Advanced dashboarding and visualization capabilities
  • Integration with a wide range of alerting and incident management tools
  • Wide range of plug-ins
  • Ease of use and manageability
  • Licensing costs
  • Availability of vendor or community support

Introducing Prometheus | Set Up

Prometheus is one of the projects managed by the Cloud Native Computing Foundation (CNCF). Many organizations use it to monitor their Kubernetes clusters. Prometheus is often used with Grafana, which is a data visualization tool.

The image below shows a typical Prometheus monitoring setup.

A Prometheus ecosystem
A Prometheus ecosystem

Prometheus usually works by scrapping metrics produced by jobs/exporters in the target system. The Prometheus server pulls these metrics and stores them in the server. The metric data are transformed with rules and categorization for use with a visualization dashboard. You can query the collected metrics using PromQL — which is similar to SQL.

Setting Up Prometheus

The easiest way to set up Prometheus is to use Helm charts to install it in a Kubernetes cluster. For our purposes, we are using an Azure Kubernetes Service (AKS) cluster and using Helm charts to install and configure Prometheus along with Grafana. As a prerequisite, you need to have Helm installed on the machine.

  1. Add the Helm repo for Prometheus and Grafana.

helm repo add prometheus-community https://prometheus-community.github.io/helm-charts
helm repo add grafana https://grafana.github.io/helm-charts
helm repo update
  1. Create a namespace for monitoring.

kubectl create namespace monitoring
  1. Install the Prometheus chart in the monitoring namespace.

helm install prometheus prometheus-community/prometheus \
--namespace monitoring \
--set alertmanager.persistentVolume.storageClass="default" \
--set server.persistentVolume.storageClass="default"
  1. Specify the data source and values in the YAML because when Grafana starts up, it needs to automatically find the data source, which, in this case, is the Prometheus endpoint. It looks like this:

datasources:
  datasources.yaml:
    apiVersion: 1
    datasources:
    - name: Prometheus
      type: prometheus
      url: http://<prometheus-server>.<monitoring_namespace>.<svc.cluster.local>
      access: proxy
      isDefault: true

Elements in the URL:

  • <terminal inline><prometheus-server><terminal inline> is the service name
  • <terminal inline><monitoring_namespace><terminal inline> is the namespace we just created
  • <terminal inline><svc.cluster.local ><terminal inline> points to the cluster IP
  1. Install the Grafana chart with the arguments below. Please change the admin password for the login.

helm install grafana grafana/grafana \
--namespace monitoring \
--set persistence.storageClassName="default" \
--set persistence.enabled=true \
--set adminPassword='Yourfavpassword' \
--values grafana.yaml \
--set service.type=LoadBalancer

Once the configuration is applied, Grafana will be up and running. You can import a template for the Kubernetes monitoring dashboard to help you get started quickly.

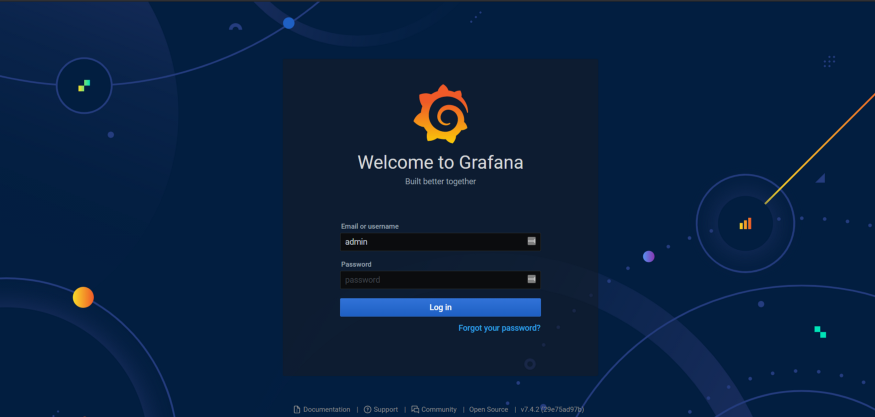

Grafana login screen
Grafana login screen

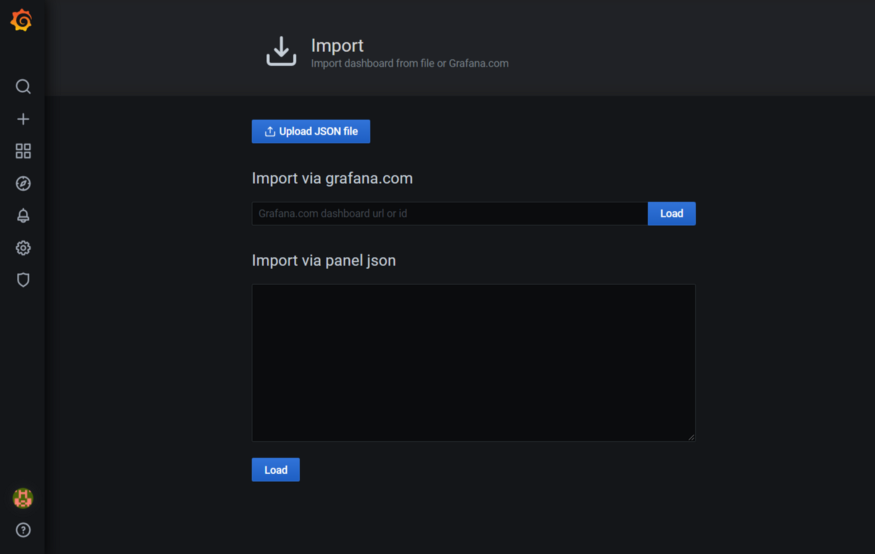

Grafana dashboard Import screen
Grafana dashboard Import screen

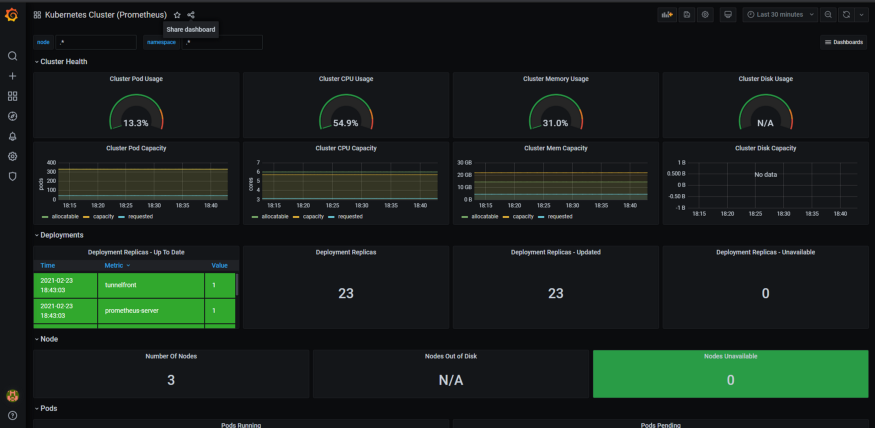

Simple Grafana dashboard for Kubernetes
Simple Grafana dashboard for Kubernetes

Is Prometheus Sufficient? Pros vs. Cons

Prometheus is especially suitable for monitoring containerized environments. Here are some of the pros and cons of using Prometheus for Kubernetes monitoring:

Pros

  • Prometheus is free. Unlike many other monitoring tools, it doesn’t have a “free tier” stipulating what you can monitor and how much data your systems can generate.
  • It has an active community that can answer (or has already answered) your questions related to Prometheus or its use for monitoring Kubernetes.
  • PromQL, a query language, is offered out of the box. You can use this to search and retrieve metric data from the time-series database (TSDB).
  • Prometheus uses a pull mechanism. Unlike other monitoring solutions, it doesn’t require agent installation, which can put unnecessary load on target systems.
  • Prometheus can be easily configured for service discovery in the network. With service discovery, Prometheus can find endpoints to scrape for metrics. This can be efficient when you have multiple Kubernetes clusters in your network and don’t want to manually add each environment.
  • Federation can be used. Sometimes your computing environment can span across public and private clouds with hundreds of networks and, perhaps, even more Kubernetes clusters. Using Prometheus federation, you can create a hierarchically scaled monitoring environment. Federation allows Prometheus to pull aggregates up the hierarchy to a global Prometheus server.
  • Managed solutions can be used if you don’t want to set up your own Prometheus environment. You can use managed solutions from public cloud providers, like AWS or Google Cloud.

Cons

  • Prometheus has a very basic data visualization capability. You have to use something like Grafana (or other visualization tools) to create complex charts and dashboards. With Grafana, you can add custom widgets to the dashboards and also can import open-source templates.
  • Log management is another area where it could add a lot of value since both logs and metrics can provide a full picture of incidents and bottlenecks.
  • It doesn’t offer advanced features, like automatic anomaly detection.
  • Prometheus has no provision for role-based user access and permissions.
  • Prometheus wasn’t designed to retain large volumes of data for a long time. This can be an issue for large networks with many Kubernetes clusters where time-based trend analysis may be critical.

Alternatives to Prometheus, & Additional Tools

ContainIQ

ContainIQ is a SaaS-based product new to the Kubernetes monitoring space. It can collect, store, and visualize metrics collected from your Kubernetes cluster. ContainIQ comes with prebuilt dashboards and easy-to-create monitors. By using an extended Berkeley Packet Filter (eBPF), ContainIQ can correlate kernel-level metrics with Kubernetes objects. It can monitor P95 and P99 latencies, failed Kubernetes jobs, pod evictions, and so on. With a one-line script, you can install the required components and start monitoring your cluster in five minutes. ContainIQ also integrates with Slack to deliver alerts.

Datadog

Datadog is a SaaS-based monitoring tool that is well optimized for cloud platforms. Apart from collecting thousands of metrics from the network, infrastructure, databases, message queues, cloud platforms, and containers, it offers a monitoring agent for Kubernetes and allows you to create intuitive and powerful dashboards from the collected metrics. Datadog also integrates with most common communication tools, like Slack or PagerDuty and offers advanced alert configuration features.

It’s not free, of course, and the minimum price starts at $15 per month per host. Other features, like application performance monitoring (APM) or log aggregation, come with an extra price tag. Also, being a SaaS solution, all your metric data will have to reside in Datadog’s own cloud tenancy.

Looking for an out-of-the-box monitoring solution?

With a simple one-line install, ContainIQ allows you to monitor the health of your cluster with pre-built dashboards and easy-to-set alerts.

Conclusion

So now, you have seen why it’s important to monitor your Kubernetes cluster and how Prometheus can help. You’ve seen how to install Prometheus with Grafana and get started quickly. Lastly, you’ve seen a few pros and cons for using Prometheus, and you’ve learned about alternative SaaS based solutions, including ContainIQ and Datadog.

As a SaaS solution, ContainIQ is easy to set up and configure. It installs an agent in your Kubernetes cluster and analyzes the collected data entirely based on eBPF—which also doesn’t require any changes in the Linux kernel. With this approach, you don’t have to configure latency on every service or install app-specific packages or configure middleware. New services automatically populate the dashboard with metrics and events. Users can search and filter the events; observe them over different time windows; and set alerts for important events, like crashloops or failed jobs; and get notified through Slack.
