Deploying Redis Cluster on Kubernetes | Tutorial and Examples

November 30, 2021

Redis is a popular key-value store for scalable queues and data storage. In this guide, learn how to run Redis on Kubernetes and explore tips for improving performance, security, and more.

Bharathiraja Shanmugam
Full-Stack Developer

Redis defines itself as an “open-source, in-memory data store used as a database, cache, and message broker.” Due to its speed, it’s unsurprising that it enjoys such market popularity.

Speed is obviously essential to contemporary development. Kubernetes, a popular platform for container orchestration, helps development teams stay competitive with their release schedules by facilitating automation for continuous integration and deployment (CI/CD).

This article explores how to set up the Redis cluster on Kubernetes so you can make the most of the speed from these two giants.

Setting Up Your Redis Cluster

Before you go much further, you should have a Kubernetes cluster up and running. This article makes use of Redis version 6, and the code is tested on the Linode Kubernetes Engine (LKE).

Follow the step-by-step instructions here, and your Redis cluster will be ready without any trouble.

1. Create a Namespace

By default, all the Kubernetes components such as pods, services, ConfigMaps, etc. are placed in the default namespace. A namespace is like a folder in the OS. Keep in mind that placing all components in one namespace can create confusion; creating a new namespace will help you manage the pods and services more efficiently.

So create a namespace for a Redis server setup:


kubectl create ns redis

Then, get the namespace list:


kubectl get ns

NAME STATUS AGE
default Active 31d
kube-node-lease Active 31d
kube-public Active 31d
kube-system Active 31d
redis Active 6d13h

2. Define a Storage Class

A storage class links to a provisioner, which is a plugin that can reserve disk space or purchase volumes to your cloud provider on your behalf.

The pod in the Kubernetes cluster does not store the data permanently. Rather, the data created inside the pod is deleted whenever the pod is deleted or restarted. To store the data permanently, Kubernetes offers volume and persistent volume.

This article uses persistent volume for the purposes of the demo with local storage (a file system folder). You can skip this section if you have some other storage provisioner.

Create a storage class, which points to the local storage, using the following manifest code:


apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  name: local-storage
provisioner: kubernetes.io/no-provisioner
volumeBindingMode: WaitForFirstConsumer
allowVolumeExpansion: true
reclaimPolicy: Delete

Copy the above code and paste it into a file named <terminal inline>sc.yaml<terminal inline>. Execute the file using the following command:


kubectl apply -f sc.yaml

The storage classes are created globally in the Kubernetes cluster. Thus, there is no need to mention the namespace while executing the manifest file for the storage class. However, for the pods and services, you must mention the namespace while executing the manifest files.

Now that the local storage class is created, you can see the list of available storage classes using the following command:


kubectl get sc

NAME PROVISIONER RECLAIMPOLICY
linode-block-storage linodebs.csi.linode.com Delete
linode-block-storage-retain (default) linodebs.csi.linode.com Retain
local-storage kubernetes.io/no-provisioner 31d

3. Create a Persistent Volume

Persistent volumes (PVs) are used to create a storage size. In this demo, you will create a Redis cluster with three pods (one master and two slaves). Therefore, create three PVs.

If you have dynamic storage provisioning permission, you can skip this section.

The following code creates three PVs using the local storage provisioner:


apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-pv1
spec:
  storageClassName: local-storage
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/storage/data1"

---

apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-pv2
spec:
  storageClassName: local-storage
  capacity:
    storage: 1Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/storage/data2"

---

apiVersion: v1
kind: PersistentVolume
metadata:
  name: local-pv3
spec:
  storageClassName: local-storage
  capacity:
    storage: 2Gi
  accessModes:
    - ReadWriteOnce
  hostPath:
    path: "/storage/data3"

Copy and paste the code into a file named <terminal inline>pv.yaml<terminal inline>. Execute the file with the following command:


kubectl apply -f pv.yaml

With three PVs now created, get the PVs list:


kubectl get pv

NAME CAPACITY ACCESS MODES RECLAIM POLICY STATUS
local-pv1 1Gi RWO Retain Available
local-pv2 1Gi RWO Retain Available
local-pv3 2Gi RWO Retain Available

Because this demo claims the PV using the volume claim templates of pod definition, you don’t need to create PVCs separately.

4. Create the ConfigMap

The ConfigMap in the Kubernetes cluster is a key-value store. You can use the config information of Redis in the Kubernetes cluster as a ConfigMap. Get the full code of the ConfigMap manifest here.

There are a couple important things to note here.

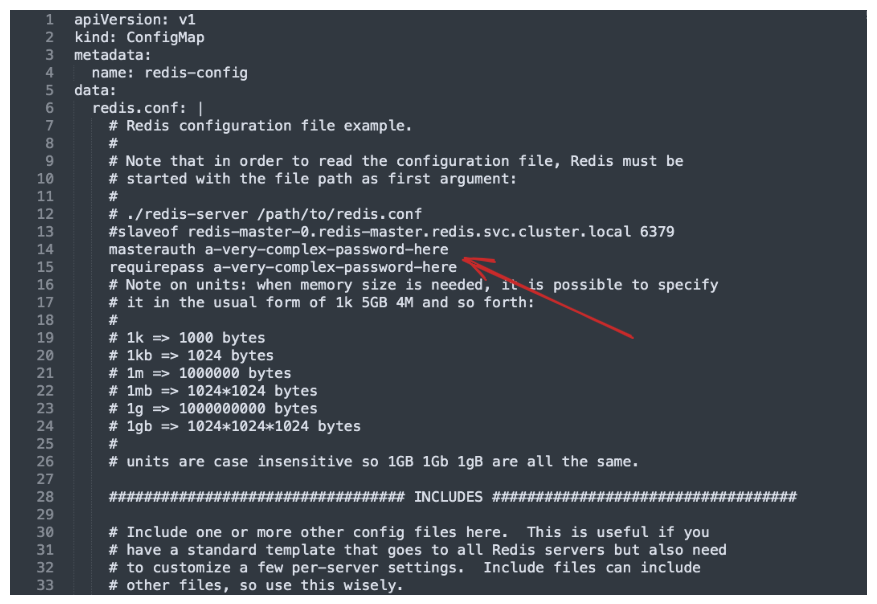

First, change the password of master and slave with your desired password, which is needed for authentication.

Redis Master and Slave Passwords
Redis Master and Slave Passwords

Keep your master and slave passwords the same; you will need to set up the failover of the master pod. If the master pod dies or restarts, then any slave pod will be made the master using. Using the same password will ensure easy communication between master and slave.

Second, do not hard code the <terminal inline>slaveof<terminal inline> value. That’s a placeholder for the master instance address. You need to generate this value on the fly due to the master failover. This value is set dynamically on the StatefulSet deployment section.

Get the ConfigMap code and save the code in a file named <terminal inline>redis-config.yaml<terminal inline>. Deploy the ConfigMap in the Redis namespace using the following command:


kubectl apply -n redis -f redis-config.yaml

Get the ConfigMap list in the Redis namespace:


kubectl get configmap -n redis

NAME
redis-config

5. Deploy Redis Using StatefulSet

StatefulSet is a Kubernetes object used to deploy stateful applications such as MySQL, Oracle, MSSQL, and ElasticSearch. You can use the Deployment object if you are planning to deploy stateless applications such as PHP, Jave, or Perl.

The StatefulSet offers ordered pod names starting from zero and recreates the pod with the same name whenever the pod dies or crashes. A pod can fail at any time. The persistent pod identifier uses this feature (recreating the pod with the same name) to match existing persistent volume (storage volume attached to the failed pod) to the newly created pod.

These features are needed when you deploy the stateful application. Therefore, use the StatefulSet controller to deploy the Redis cluster:


apiVersion: apps/v1
kind: StatefulSet
metadata:
  name: redis
spec:
  serviceName: redis
  replicas: 3
  selector:
    matchLabels:
      app: redis
  template:
    metadata:
      labels:
        app: redis
    spec:
      initContainers:
      - name: config
        image: redis:6.2.3-alpine
        command: [ "sh", "-c" ]
        args:
          - |
            cp /tmp/redis/redis.conf /etc/redis/redis.conf

            echo "finding master..."
            MASTER_FDQN=`hostname  -f | sed -e 's/redis-[0-9]\./redis-0./'`
            if [ "$(redis-cli -h sentinel -p 5000 ping)" != "PONG" ]; then
              echo "master not found, defaulting to redis-0"

              if [ "$(hostname)" == "redis-0" ]; then
                echo "this is redis-0, not updating config..."
              else
                echo "updating redis.conf..."
                echo "slaveof $MASTER_FDQN 6379" >> /etc/redis/redis.conf
              fi
            else
              echo "sentinel found, finding master"
              MASTER="$(redis-cli -h sentinel -p 5000 sentinel get-master-addr-by-name mymaster | grep -E '(^redis-\d{1,})|([0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3}\.[0-9]{1,3})')"
              echo "master found : $MASTER, updating redis.conf"
              echo "slaveof $MASTER 6379" >> /etc/redis/redis.conf
            fi
        volumeMounts:
        - name: redis-config
          mountPath: /etc/redis/
        - name: config
          mountPath: /tmp/redis/
      containers:
      - name: redis
        image: redis:6.2.3-alpine
        command: ["redis-server"]
        args: ["/etc/redis/redis.conf"]
        ports:
        - containerPort: 6379
          name: redis
        volumeMounts:
        - name: data
          mountPath: /data
        - name: redis-config
          mountPath: /etc/redis/
      volumes:
      - name: redis-config
        emptyDir: {}
      - name: config
        configMap:
          name: redis-config
  volumeClaimTemplates:
  - metadata:
      name: data
    spec:
      accessModes: [ "ReadWriteOnce" ]
      storageClassName: "local-storage"
      resources:
        requests:
          storage: 500Mi

Save the above code in a file named <terminal inline>redis-statefulset.yaml<terminal inline> and execute using the following command:


kubectl apply -n redis -f redis-statefulset.yaml

Now, get the list of running pods under the Redis namespace:


kubectl get pods -n redis

NAME READY STATUS RESTARTS AGE
redis-0 1/1 Running 0 3d
redis-1 1/1 Running 0 3d1h
redis-2 1/1 Running 0 3d1h

Now three pods are up and running: <terminal inline>redis-0<terminal inline>, <terminal inline>redis-1<terminal inline>, and <terminal inline>redis-2<terminal inline>. The <terminal inline>redis-0<terminal inline> pod will act as master, and the other pods will act as slaves.

Do note that it is possible that you will receive the following error you when you create the StatefulSet for Redis:


0/2 nodes are available: 2 pod has unbound immediate PersistentVolumeClaims.

The code used for Redis StatefulSet will look for a PV. If you have dynamic provisioning, then the code itself will automatically create the three PVs. If you don’t have dynamic provisioning, then create three PVs with the same access mode in the volume claim template to resolve the error.

6. Create Headless Service

You cannot directly access the application running in the pod. If you want to access the application, you need a Service object in the Kubernetes cluster. Create a headless service for a Redis pod using the following code:


apiVersion: v1
kind: Service
metadata:
  name: redis
spec:
  clusterIP: None
  ports:
  - port: 6379
    targetPort: 6379
    name: redis
  selector:
    app: redis
Headless service means that only internal pods can communicate with each other. They are not exposed to external requests outside of the Kubernetes cluster.

Save the previous code in a file named redis-service.yaml and execute the code with this command:


kubectl apply -n redis -f redis-service.yaml

Now get the list of running services under the Redis namespace:


kubectl get service -n redis

NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S)
redis ClusterIP None <None> 6379/TCP

The service endpoints for each Redis pod are given below:


#syntax
pod_name.service_name.namespace.svc.cluster.local

#Example
redis-0.redis.redis.svc.cluster.local
redis-1.redis.redis.svc.cluster.local
redis-2.redis.redis.svc.cluster.local

Now you can access the Redis pods using the above endpoints with Redis client utility tools.

7. Check Replication

You created a Redis cluster with one master and two slaves. The pod <terminal inline>redis-0<terminal inline> will act as master and the pods <terminal inline>redis-1<terminal inline> and <terminal inline>redis-2<terminal inline> will act as slaves. Check the logs of the master pod, and you can see the replication and synchronization with the slave pods:


kubectl -n redis logs redis-0

Redis Master and Slave In Sync

The above diagram shows the master pod in sync with two slave pods. The pod IP address will change whenever it is deleted and recreated, so don’t stick to the IP addresses of the pod.

Alternatively, you can use the <terminal inline>describe<terminal inline> command to get more details about the pod:


kubectl -n redis describe pod redis-0

Get the replication information using the following command:


kubectl -n redis exec -it redis-0 -- sh
redis-cli
auth a-very-complex-password-here
info replication
Redis Master POD information
Redis Master POD information

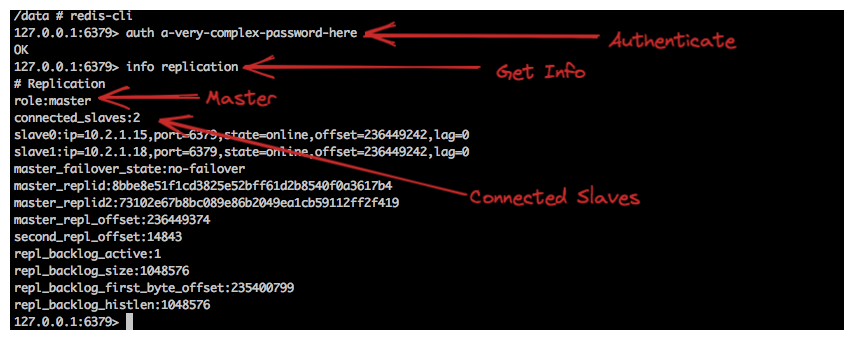

This screenshot shows how many slaves are connected with the master, as well as the slave’s IP address and other information.

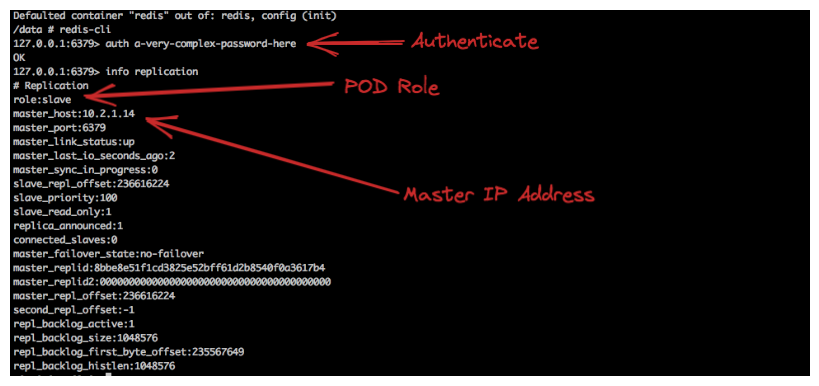

Likewise, you can check the slave pod’s log and see the successful connection between master and slave:


kubectl -n redis exec -it redis-1 -- sh
redis-cli
auth a-very-complex-password-here
info replication
Redis Slave POD information
Redis Slave POD information

8. Test Replication

You have successfully created the Redis cluster. Now it is time to test the replication. Note that you are able to write data on the master pod only; slave pods are used for reading purposes only. So, log in to the master pod and create some key-value pair data. Then check if the same data is replicated in the slave pods.

Enter into the master pod:


kubectl -n redis exec -it redis-0 -- sh

Connect to Redis using the Redis CLI:


redis-cli

Authenticate yourself using the master password:


auth a-very-complex-password-here

You’re authenticated with the Redis master instance, but as of now, you don’t have any data. Create some key-value pair data using the following command:


SET emp1 raja
SET emp2 mano
SET emp3 ram

Now get the key-value pair list:


KEYS *

1) "emp3"
2) "emp2"
3) "emp1"

Now log in to the slave pods and check to see if they show the same three data.

Enter into the slave pod <terminal inline>redis-1<terminal inline>:


kubectl -n redis exec -it redis-1 -- sh

Connect to Redis using the Redis CLI:


redis-cli

Authenticate yourself using the slave password:


auth a-very-complex-password-here

Get the key-value pair list:


KEYS *

This shows the same three data you created on the master pod. Repeat the same steps for slave 2 by changing the name to <terminal inline>redis-2<terminal inline> in the exec command to enter into the pod and check the data.

Final Thoughts

Deploying stateful applications in the Kubernetes cluster can be tedious and time-consuming. Whenever you deploy a stateful application cluster, the master pod is only allowed to write data. This is because you can’t handle data sync if multiple pods are allowed to write data. The master pod will push the data change to slave pods and will always remain in sync.

This approach ensures that data is replicated across all pods smoothly. The slave pods, then, are used for data retrieval purposes only. As a standard procedure, the first pod will be assumed as master and other pods will be slaves. So, for a stateful application cluster, you need an ordered pod name.

However, pods are assigned a random name in the Kubernetes deployment. Also, to match the existing persistent volume to the newly created pod, the same pod name is required whenever a pod restarts.

The StatefulSet controller in the Kubernetes cluster will help you deploy a stateful application easily by providing an ordered number for each pod starting from zero, and by creating the same pod name whenever the pod dies or restarts. The feature offered by the StatefulSet controller is highly needed to set up a cluster environment for stateful applications.

Deploying stateful applications on the Kubernetes cluster is always complex. This article eases the complexity involved with deploying the Redis cluster.
